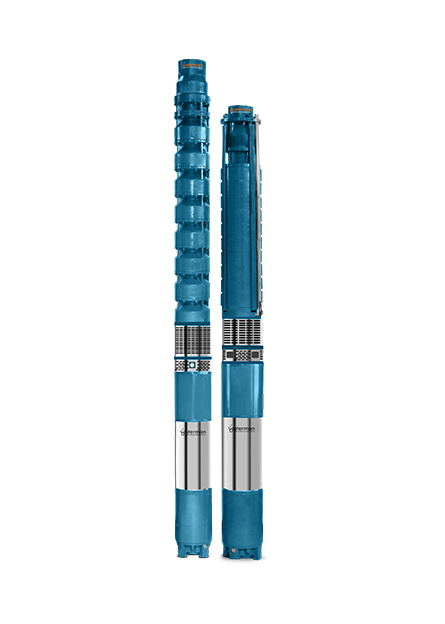

V10 Submersible Pumpset
Slient Features:
- Multi stage centrifugal pump with radial & mixed flow impeller.
- It operates submerged beneath the surface of water.
- Prime mover motors are wet type, water lubricated.
- Easy installations and easy service.
- It also works on low voltage.
- Energy efficient design.
- Good quality components and parts require less maintenance.
- Motor
- Pump
- Range
- Motor body - Stainless Steel
- Components - Graded cast iron
- Stamping - Electrical grade silicon steel sheet
- Thrust Bearing - Stainless Steel - 420 Tilting pad segment with carbon plated
- Bush baring -G.M. LTB-4
- Shaft - Stainless Steel - 410 / 420
- Rotor - Dynamically balanced
- Seal - Nitrile rubber oil seal
- Winding - Poly wrap double coated copper wire
- 10.0 HP TO 100 HP
- THREE PHASE : 300-415V
- HEAD : 12 MTR TO 414 MTR
- CAPACITY : 290 LPM TO 3900 LPM
- AC, 50 HZ, 2900 RPM
- TOTAL NO. OF MODELS : 173 Nos.
- ISI MODELS : 46 Nos.
