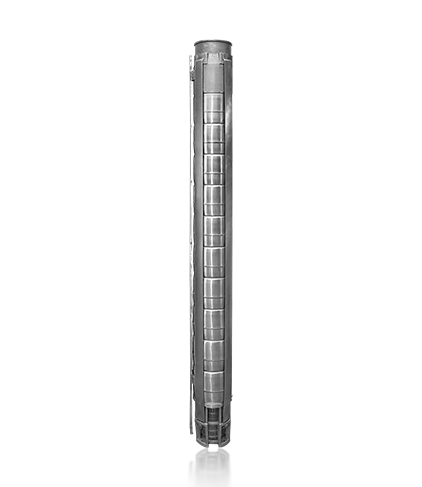

8'' SS pumps

Construction:

  • Submersible motor & pumps for deep wells of 8” (DN 100 mm).
  • Sized for connection to the motor according to NEMA standards
  • Delivery casing with built-in non-return valve.
  • All standard pumps are completely manufactured out of stainless steel AISI 304 sheet metal.
  • Impeller:
    Mixed Flow impellers
    WSP77, WSP95
  • Connection : Screwed pipe connection with BSP thread as standard.

Application:

  • Water supply
  • Irrigation
  • Civil
  • Industrial
  • Fire fighting



  • Performance range
  • Operating conditions
  • Special construction on request
  • Materials
  • Flow range: Max. 123.8m3 /h
  • Head range: Max. 423m
  • Liquid temperature: 0°C to +45°C
  • Max. sand content into the water:50 g/m3
  • Max. starts per hour : 20 at regular intervals
  • Direction of rotation : Clockwise as seen from the pump coupling side
  • Also available in stainless steel AISI 316 material
  • Also available with NPT thread pipe connection.
Pos. Component Material
1 Bowl / Diffuser Stainless steel AISI 304
2 Impeller Stainless steel AISI 304
3 Neck Ring NBR
4 Shaft Stainless steel AISI 431
5 Couple Stainless steel AISI 316
6 Delivery casing Stainless steel AISI 304
7 Suction case Stainless steel AISI 304
8 Bearing bush NBR
9 Strainer Stainless steel AISI 304
