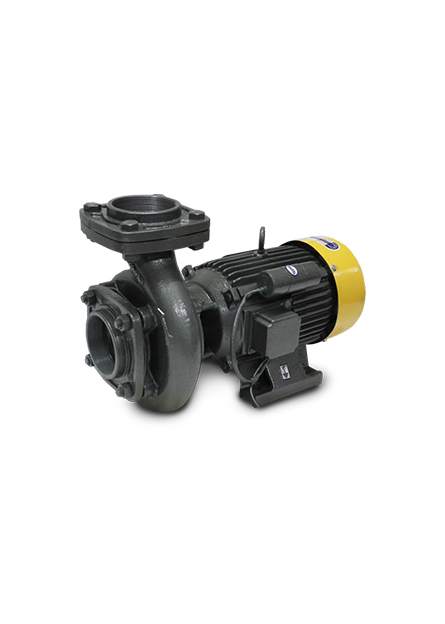

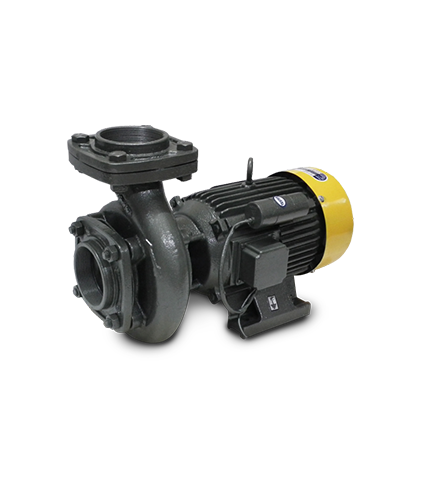

Centrifugal Monoblock Pumpsets

MODEL	MOTOR H.P	DEL. SIZE	Voltage Range	DISCHARGE IN LPM																	Price
				Head in mtr./Discharge in LPM (ltr.per mintue)
				4	5	6	8	9	10	12	14	16	18	20	22	24	26	28	30	32
11MBC0.5 SP	0.5	25x25	160 - 240				110	105	102	85	70										4670
11MBC0.5 TP	0.5	25x25	350 - 415				110	105	102	85	70										4778
1515MBC0.5 SP	0.5	40x40	160 - 240			250	210	200	195	160											5070
1515MBC0.5 TP	0.5	40x40	350 - 415			250	210	200	195	160											5070
1515MBC0.5 SP LV	0.5	40x40	120 - 210			290	260	220	200	160											5470
22MBC0.5 SP	0.5	50x50	160 - 240		300	290	200	165	140												5455
22MBC0.5 TP	0.5	50x50	350 - 415		300	290	200	165	140												5470
22MBC0.5 SP LV	0.5	50x50	120 - 210		300	250	200	165	140												5772
11MBC1.0 SP	1.0	25x25	160 - 240										150	149	140	135	95	80			7157
11MBC1.0 TP	1.0	25x25	350 - 415										150	149	140	135	95	80			7157
1515MBC1.0 SP	1.0	40x40	160 - 240				320	317	312	300	260	210	180	117							7361
1515MBC1.0 TP	1.0	40x40	350 - 415				320	317	312	300	260	210	180	117							7361
22MBC1.0 SP	1.0	50x50	160 - 240			500	480	440	425	300											7340
22MBC1.0 TP	1.0	50x50	350 - 415			500	480	440	425	300											7361
22MBC1.0 DP	1.0	50x50	250 - 380			500	480	440	425	300											7361
22MBC1.0 SP LV	1.0	50x50	120 - 210			500	480	440	425	300											7459
33MBC1.0 SP (CHAMP)	1.0	75x75	160 - 240	600	550	520	400	150													8127
33MBC1.0 SP	1.0	75x75	160 - 240	750	700	650	480	350													8752
1515MBC1.5 SP	1.5	40x40	160 - 240									370	350	320	280	250	200	150	70		8999
1515MBC1.5 TP	1.5	40x40	350 - 415									370	350	320	280	250	200	150	70		8999
1515MBC1.5 DP	1.5	40x40	250 - 380									370	350	320	280	250	200	150	70		8999
22MBC1.5 SP	1.5	50x50	160 - 240				470	460	440	365	235	190									8951
22MBC1.5 SP LV	1.5	50x50	120 - 210				470	460	440	365	235	190									9111
22MBC1.5 TP	1.5	50x50	350 - 415				470	460	440	365	235	190									8951
22MBC1.5 DP	1.5	50x50	250 - 380				470	460	440	365	235	190									9048
252MBC1.5 SP	1.5	65x50	160 - 240					480	460	400	360	270	175								9048
252MBC1.5 SP LV	1.5	65x50	120 - 210					480	460	400	360	270	175								9210
252MBC1.5 TP	1.5	65x50	350 - 415					480	460	400	360	270	175								9048
252MBC1.5 DP	1.5	65x50	250 - 380					480	460	400	360	270	175								9206
33MBC1.5 SP	1.5	75x75	160 - 240			900	750	425	167												9448
33MBC1.5 TP	1.5	75x75	350 - 415			900	750	425	167												9448
33MBC1.5 DP	1.5	75x75	250 - 380			900	750	425	167												9448
1515MBC2.0 SP	2.0	40x40	160 - 240										390	370	350	320	280	250	200	70	10940
1515MBC2.0 TP	2.0	40x40	350 - 415										390	370	350	320	280	250	200	70	10940
22MBC2.0 SP	2.0	50x50	160 - 240			520	500	450	440	415	385	340	300	217	197	142(23 m)					10940
22MBC2.0 TP	2.0	50x50	350 - 415			520	500	450	440	415	385	340	300	217	197	142(23 m)					10940
22MBC2.0 DP	2.0	50x50	250 - 380			520	500	450	440	415	385	340	300	217	197	142(23 m)					11242
22MBC2.0 SP LV	2.0	50x50	120 - 210			520	500	450	440	415	385	340	300	217	197	142(23 m)					11135
252MBC2.0 SP	2.0	65x50	160 - 240			625	590	575	540	490	460	380	320	250							11037
252MBC2.0 TP	2.0	65x50	350 - 415			625	590	575	540	490	460	380	320	250							11037
252MBC2.0 DP	2.0	65x50	250 - 380			625	590	575	540	490	460	380	320	250							11242
252MBC2.0 SP LV	2.0	65x50	120 - 210			625	590	575	540	490	460	380	320								11242
325MBC2.0 SP	2.0	75x65	160 - 240			700	620	590	550	497	400	260									11534
325MBC2.0 TP	2.0	75x65	350 - 415			700	620	590	550	497	400	260									11534
325MBC2.0 SP LV	2.0	75x65	120 - 210			700	620	590	550	497	400	260									11739
325MBC2.0 DP	2.0	75x65	250 - 380			700	620	590	550	497	400	260									11739
33MBC2.0 SP	2.0	75x75	160 - 240			833	700	650	550	450	300(13m)										11534
33MBC2.0 TP	2.0	75x75	350 - 415			833	700	650	550	450	300(13m)										11534
33MBC2.0 SP LV	2.0	75x75	110 - 210			833	700	650	550	390	300(13m)										11739
33MBC2.0 DP	2.0	75x75	180 - 415			833	700	650	550	390	300(13m)										11837
215MBC2.0 SPHD	2.0	50x40	150 - 240								480	455	425	365	340	325	285	250	175	0	14710
22MBC2.0 SPHD	2.0	50x50	160 - 240						540	530	510	470	450	400	370	330	250	180			14710
22MBC3.0 SP	3.0	50x50	170 - 240						555	550	530	510	480	450	400	360	310	260	200	0	14900
22MBC3.0 DP	3.0	50x50	250 - 380						555	550	530	510	480	450	400	360	310	260	200	0	14900
22MBC3.0 TP	3.0	50x50	250 - 380						555	550	530	510	480	450	400	360	310	260	200	0	14900
252MBC3.0 SP	3.0	65x50	170 - 240							640	590	550	490	440	330	0(26 m)					14519
252MBC3.0 DP	3.0	65x50	250 - 380							640	590	550	490	440	330	0(26 m)					14519
252MBC3.0 TP	3.0	65x50	250 - 380							640	590	550	490	440	330	0(26 m)					14519
33MBC3.0 SP	3.0	75x75	170 - 240	1035	1010	960	900	840	700	550	400	0(17 m)									14900
33MBC3.0 DP	3.0	75x75	250 - 380	1035	1010	960	900	840	700	550	400	0(17 m)									14900
33MBC3.0 TP	3.0	75x75	250 - 380	1035	1010	960	900	840	700	550	400	0(17 m)									14900
44MBC3.0 SP	3.0	100x100	170 - 240			1080	1050	1030	900	710	500	0(18 m)									14900
44MBC3.0 DP	3.0	100x100	250 - 380			1080	1050	1030	900	710	500	0(18 m)									14900
44MBC3.0 TP	3.0	100x100	250 - 380			1080	1050	1030	900	710	500	0(18 m)									14900

Note : If required pump set with extension shaft than additional cost will be added in list price as per mentation 0.5 HP, RS. 200, 1 HP RS. 300, 1.5 HP RS. 350, 2 HP RS. 400

Centrifugal Monoblock Pumpsets
