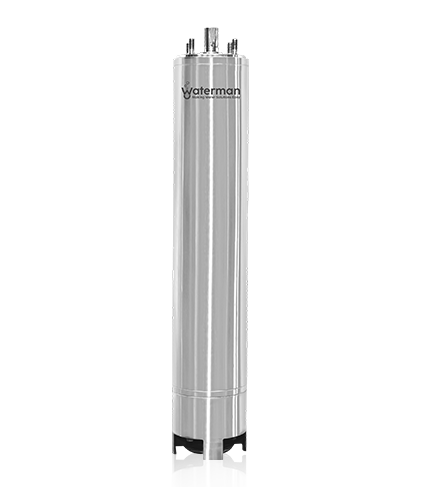

4” Single Piece SS Design Motor

4” Single Piece SS Design Motor

Make An Inquiry Download Catalogue
  • Product Specification
  • Product Application
  • Cross Sectional View
  • Exploaded View

Product Specification And Material Of Consutruction:

  • Motor Body : SS304
  • Stator Stamping : Electrical Grade Silicon Steel
  • Thrust Bearing : SS420 Segment With Carbon Plate
  • Rotor Shaft : SS420 / SS431
  • Bush : GM LTB4
  • Seal : Nitrile Rubber
  • Winding Wire : Polywrap Doublecoated Copper Wire
  • Upper & Lower Bearing Housing : SS304 IC
  • Rewindable
  • Degree of protection : IP 68
  • Max water temperature : 35° C
  • Nos. of Start per Hour : Max 20 at regular intervals.
  • Voltage variation : +6% / -10% at rated voltage.
  • Motor cable length : 3.0 meters (3 core)
  • Mounting : NEMA standards Vertical
  • Power Range :
    • Single Phase : 0.37 kW–2.2 kW
    • AC Single Phase Operating Voltage Band : 180–240 V , 50HZ
    • Three Phase : 0.75 kW–7.5 kW
    • AC Three Phase Operating Voltage Band : 300–415 V , 50HZ
  • Speed : 2800 RPM
  • Residential Purpose
  • Irrigation
  • Fountains
  • Industrial Water Supply
  • Pressure Boosting Units
  • Gardens & Horticulture
  • Drip & Sprinkler Systems
  • Mining Industries
  • Oil & Gas Industries
MODEL KW HP MOTOR LENGTH (mm)
W4SP0005H5SS 0.37 0.5 328.5
W4SP0007H5SS 0.55 0.75 368.5
W4SP0010H5SS 0.75 1 368.5
W4TP0010H5SS 0.75 1 368.5
W4SP0015H5SS 1.1 1.5 398.5
W4TP0015H5SS 1.1 1.5 398.5
W4SP0020H5SS 1.5 2 458.5
W4TP0020H5SS 1.5 2 458.5
W4SP0030H5SS 2.2 3 533.5
W4TP0030H5SS 2.2 3 533.5
W4TP0040H5SS 3 4 603.5
W4TP0050H5SS 3.7 5 603.5
W4TP0075H5SS 5.5 7.5 733.5
W4TP0100H5SS 7.5 10 858.5

NOTE: W4-4" MOTOR, SP - SINGLE PHASE, TP-THREE PHASE SS-STAINLESS STEEL (FULL SS)

SR. NO. PART DESCRIPTION MOC QTY.
1 SCREW (M5) SS 304 6
2 MOTOR BASE PLATE SS 304 1
3 DIAPHRAGM NITRILE RUBBER 1
4 THREADED ROCKER (M18) SS 410 AS PER IS:1570 (V) 1
5 MOTOR BASE SS 304 1
6 THRUST BEARING CI FG 260 + SS 420 1
7 REVOLVING PLATE CI + CARBON 1
8 ROTOR CIRCLIP MS 1
9 LOWER HOUSING SS 304 1
10 COUNTER THRUST RING PVC 1
11 BUSH GM LTB-4 4
12 UPPER COLLAR MS 1
13 BALANCING RING CI FG 200 AS PER IS:210 2
14 COPPER RING ELECTRO GRADE COPPER 1
15 STATOR TUBE SS 304 1
16 STATOR STAMPING CRNO M47/50SDP660 1
17 ROTOR STAMPING CRNO M47/50SDP660 1
18 ROTOR SHAFT SS 420 HT/SS 431 1
19 LOWER COLLAR MS 1
20 UPPER HOUSING SS 304 1
21 CABLE GROMET NITRILE RUBBER 1
22 CABLE CLIP SS 202 1
23 STUD (M6) SS 304 4
24 SAND GUARD NITRILE RUBBER 1
25 OIL SEAL COVER SS 410 AS PER IS:1570 (V) 1
26 OIL SEAL NITRILE RUBBER 2
27 ALLEN BOLT (M6) SS 304 4
28 O RING NITRILE RUBBER 7
29 STATOR CIRCLIP MS WITH CED COATING 1
30 UPPER FLANGE MS WITH CED COATING 1
31 LOWER FLANGE MS WITH CED COATING 1
32 DRAIN PLUG (5/16") BRASS 2
33 NUT (M6) SS 304 4
34 WASHER (M6) SS 304 4
35 STUD (M6) SS 304 4
36 REVOLVING PLATE KEY SS 410 AS PER IS:1570 (V) 1
37 GRUB SCREW (M5) SS 304 2
38 COPPER ROD ELECTRO GRADE COPPER 22
39* CABLE ELECTRO GRADE COPPER + PVC 3 Meter
40* WINDING WIRE POLYWRAP + BOPP —

NOTE: ITEMS NOT SHOWN IN DRAWING

SR. NO. PART DESCRIPTION MOC QTY.
1 SCREW (M5) SS 304 6
2 MOTOR BASE PLATE SS 304 1
3 NUT (M6) SS 304 4
4 WASHER (M6) SS 304 4
5 STUD (M6) SS 304 4
6 DIAPHRAGM NITRILE RUBBER 1
7 THREADED ROCKER (M18) SS 410 AS PER IS:1570 (V) 1
8 MOTOR BASE SS 304 1
9 THRUST BEARING CI FG 260 + SS 420 1
10 REVOLVING PLATE CI + CARBON 1
11 COUNTER THRUST RING PVC 1
12 BUSH GM LTB-4 4
13 LOWER HOUSING SS 304 1
14 STATOR CIRCLIP MS WITH CED COATING 1
15 LOWER FLANGE MS WITH CED COATING 1
16 STATOR TUBE SS 304 1
17 UPPER COLLAR MS 1
18 ROTOR CIRCLIP MS 1
19 REVOLVING PLATE KEY SS 410 AS PER IS:1570 (V) 1
20 ROTOR SHAFT SS 420 HT/SS 431 1
21 BALANCING RING CI FG 200 AS PER IS:210 2
22 COPPER RING ELECTRO GRADE COPPER 1
23 ROTOR STAMPING CRNO M47/50SDP660 1
24 UPPER FLANGE MS WITH CED COATING 1
25 UPPER HOUSING SS 304 1
26 CABLE GROMET NITRILE RUBBER 1
27 CABLE CLIP SS 202 1
28 ALLEN BOLT (M6) SS 304 4
29 O'RING NITRILE RUBBER 8
30 DRAIN PLUG (5/16") BRASS 2
31 OIL SEAL NITRILE RUBBER 2
32 OIL SEAL COVER SS 410 AS PER IS:1570 (V) 1
33 SAND GUARD NITRILE RUBBER 1
34 STUD (M8) SS 304 2
35* GRUB SCREW (M5) SS 304 2
36* COPPER ROD ELECTRO GRADE COPPER 22
37* LOWER COLLAR MS 1
38* CABLE ELECTRO GRADE COPPER + PVC 3 Meter
39* WINDING WIRE POLYWRAP + BOPP —
40* O'RING NITRILE RUBBER 3
41* STATOR STAMPING CRNO M47/50SDP660 1

NOTE: ITEMS NOT SHOWN IN DRAWING
