Self Priming Monoblock Pumpset
V type Monoblock Pumpset
Super suction monoblock
Pumpset
Centrifugal Shallow
well Monoblock Pumpset
Centrifugal Monoblock Pumpsets

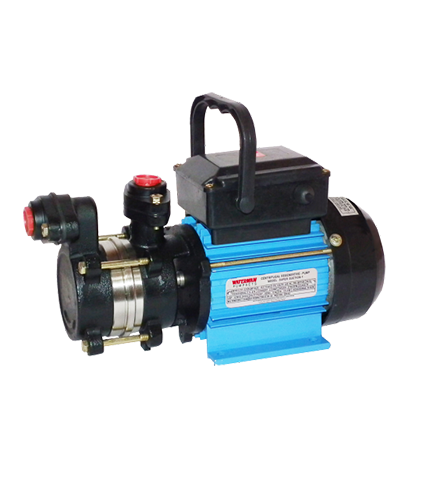

Super suction monoblock Pumpset
Application
- Small Fountains
- Civil Applications
- Solar Heater Systems
- Residential Bungalows
- Drinking Water Supply
- Gardens and Domestic
- Small Gardens
- Water Circulation in Lawns
- Water Storage Tanks
- Small Farms
- Domestic Pressure Boosting
Features
- Corrosion free SS Casing, SS Shaft and brass impeller
- Available in cast iron and aluminium extrusion body.
- Double sealed ball bearing
- Sturdy handle for easy lifting
- Fitted with Thermal Overload Protector
- Specifications
- Material of construction
- Product Detail
| Power Range | : | 0.37 kW to 0.75 kW (0.5 HP t0 1.O HP) |
| Versions | : | 1 Phase, 180 Volts to 240 volts, 50 Hz, AC supply |
| Speed | : | 2880 rpm |
| Direction of Rotation | : | Clockwise from the driving end |
| Nominal size (Suc x Del) | : | 15 mm x 15mm, 25 x 25 mm |
| Class of Insulation | : | B |
| Type of Duty | : | S1 |
| Part Name | Material |
|---|---|
| Pump Casting | Stainless Steel (Non Magnetic) |
| Motor Frame | Aluminium & C.I. |
| Impeller | Brass |
| Shaft | SS 410 |
| Sealing | Mechanical Seal (Carbon & Ceramic) |
| Model | Kw / Hp | Pipe Size In mm |
Body | Head In Meters / Discharge In LPH | Frame Size | Price |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 8 | 14 | 17 | 20 | 22 | 24 | 27 | 30 | 33 | 36 | ||||||
| Power Gold - 2 | 0.37 / 0.50 | 15 * 15 | ALU | 1800 | 1440 | 1140 | 1020 | 840 | 660 | 480 | 300 | - | - | - | 63 | 3692 |
| Power Gold - 2 CI | 0.37 / 0.50 | 15 * 15 | CI | 1800 | 1440 | 1140 | 1020 | 840 | 660 | 480 | 300 | - | - | - | 71 | 3941 |
| Power Gold - 2A | 0.55 / 0.75 | 25 * 25 | ALU | 2160 | 1740 | 1440 | 1260 | 1080 | 960 | 840 | 660 | 480 | 120 | - | 63 | 4191 |
| Power Gold - 1 | 0.75 / 1.0 | 25 * 25 | ALU | 2400 | 2220 | 1980 | 1800 | 1440 | 1380 | 1320 | 1260 | 1020 | 720 | 300 | 63 | 4730 |
PRICES AND PERFORMANCE CHART FOR SINGLE PHASE HORIZONTAL "DIAMOND" MODEL OPENWELL PUMPSET 'DIAMOND' MODEL PRICES WITH SINGLE PHASE M.C.B. PANEL
| Model | Pipe Size In mm |
Capacitor | Head In Meters / Discharge In LPH | Price Sliver |
Price Gold |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1DHMS 0.5 | 25 * 25 | 36 mfd. | H | 19 | 17 | 15 | 14 | 13 | 12 | 11 | 9 | 5800 | 6469 |
| Q | 0 | 60 | 100 | 115 | 125 | 135 | 140 | 150 | |||||
| 1DHMS 1.0 | 25 * 25 | 45 mfd. | H | 27 | 26 | 25 | 21 | 20 | 18 | 15 | 14 | 7008 | 7878 |
| Q | 0 | 25 | 70 | 95 | 125 | 145 | 155 | 180 | |||||
