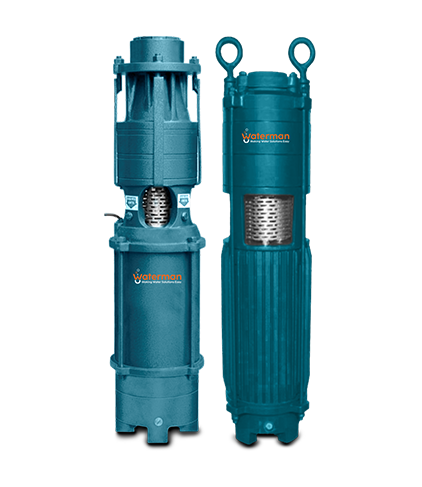

Vertical open Submersible Pumpset
Features:
Submerged in water permantatly so no need of separate cabin
Compact design suitable for minimum water level
It also works on low voltage
Noiseless and vibration free operation
Installation without foot valve
Easy installation and servicing
Material Specification:
Motor body - Graded cast iron
Stamping - Electrical grade silicon steel sheet
Shaft-Stainless Steel 410
Thrust Bearing - Stainless Steel 304 tilting pad segment with carbon plate
Seal- Nitrile Rubber Oil Seal
Impeller/Rotor - Dynamically balanced
Winding wire - Poly Wrap Double Coated Copper Wire
MATERIAL SPECIFICATION:
RANGE 3 PHASE(300-415V)
HP: 3.0 HP TO 20.0 HP
HEAD: 8 MTR TO 120 MTR
CAPACITY: 100 LPM TO 960 LPM
AC,50 HZ. 2900 RPM
TOTAL NO. OF MODELS: 38 Nos.
